Lucidchart

Updated

Overview

This guide outlines the steps to integrate Lucidchart on the Josys App Catalog page.

Integration Specifications

Target Plans Team, Enterprise
Admin Role Required Account Owner
Integration Method OAuth
Integration Key Email
Supported Features Account Visualization License Visualization License Modification Role Modification
Excluded Statuses for Unmanaged IDs Deleted
Provisioning Settings
Deprovisioning Settings
Subscription Information How to check subscription information
Other Retrieved Items Role
Visualized Items - Permissions
- Status
- Role
Retrieved License Items Plan Name User Licenses Assigned
Common Items Role Status User
Retrieved Permission Types - account-owner
- billing-admin
- document-approver
- team-admin
Permission Editing Supported

Generating API Tokens

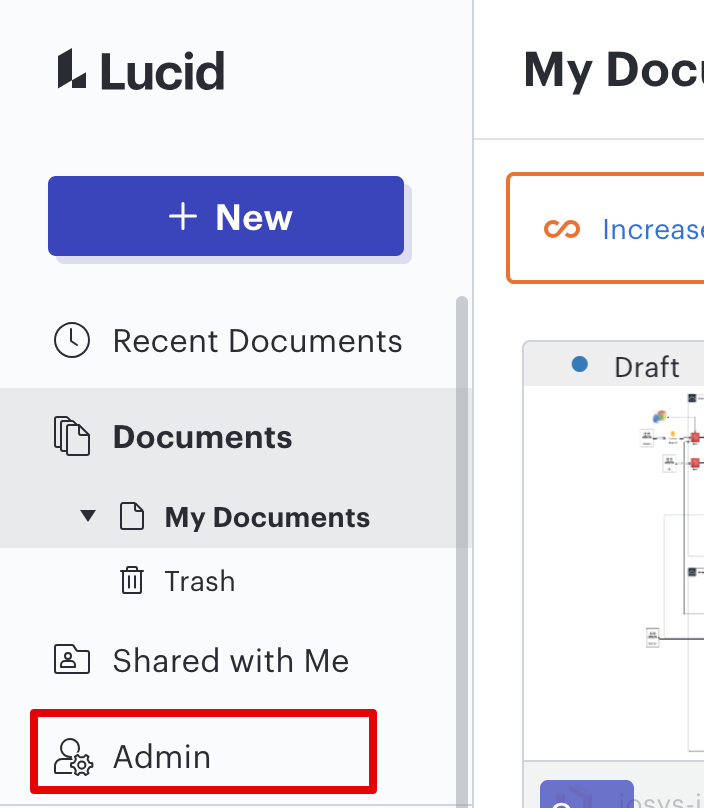

  1. Log in to Lucidchart with an Account Owner account and click the Admin menu.

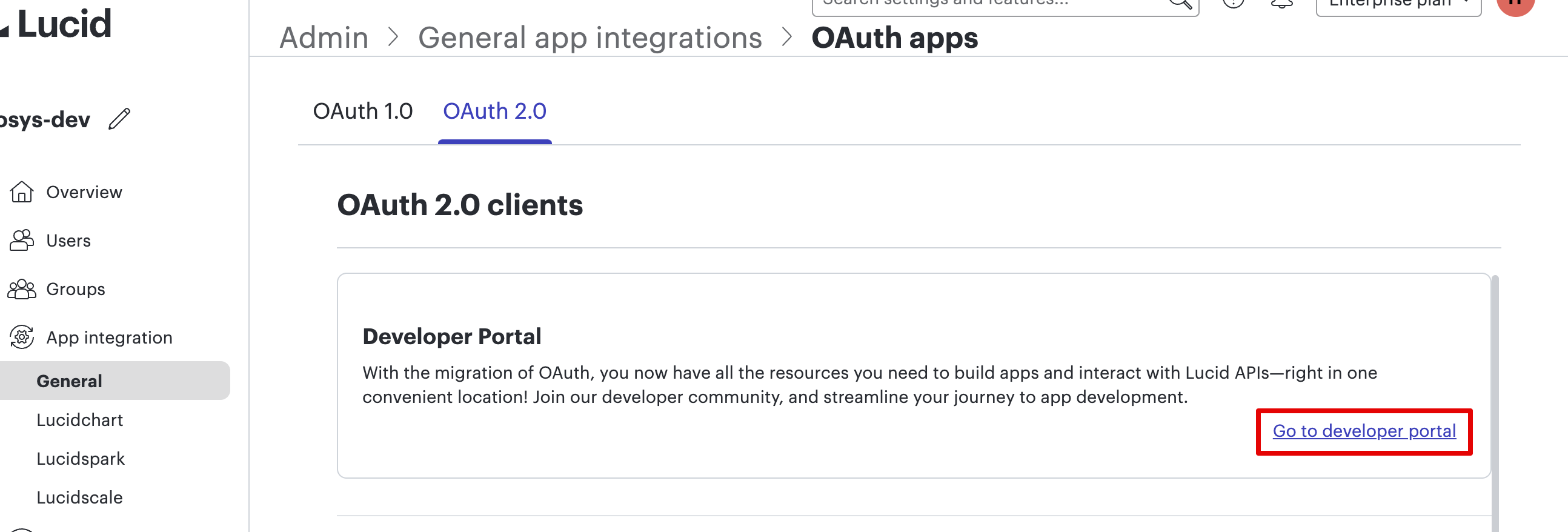

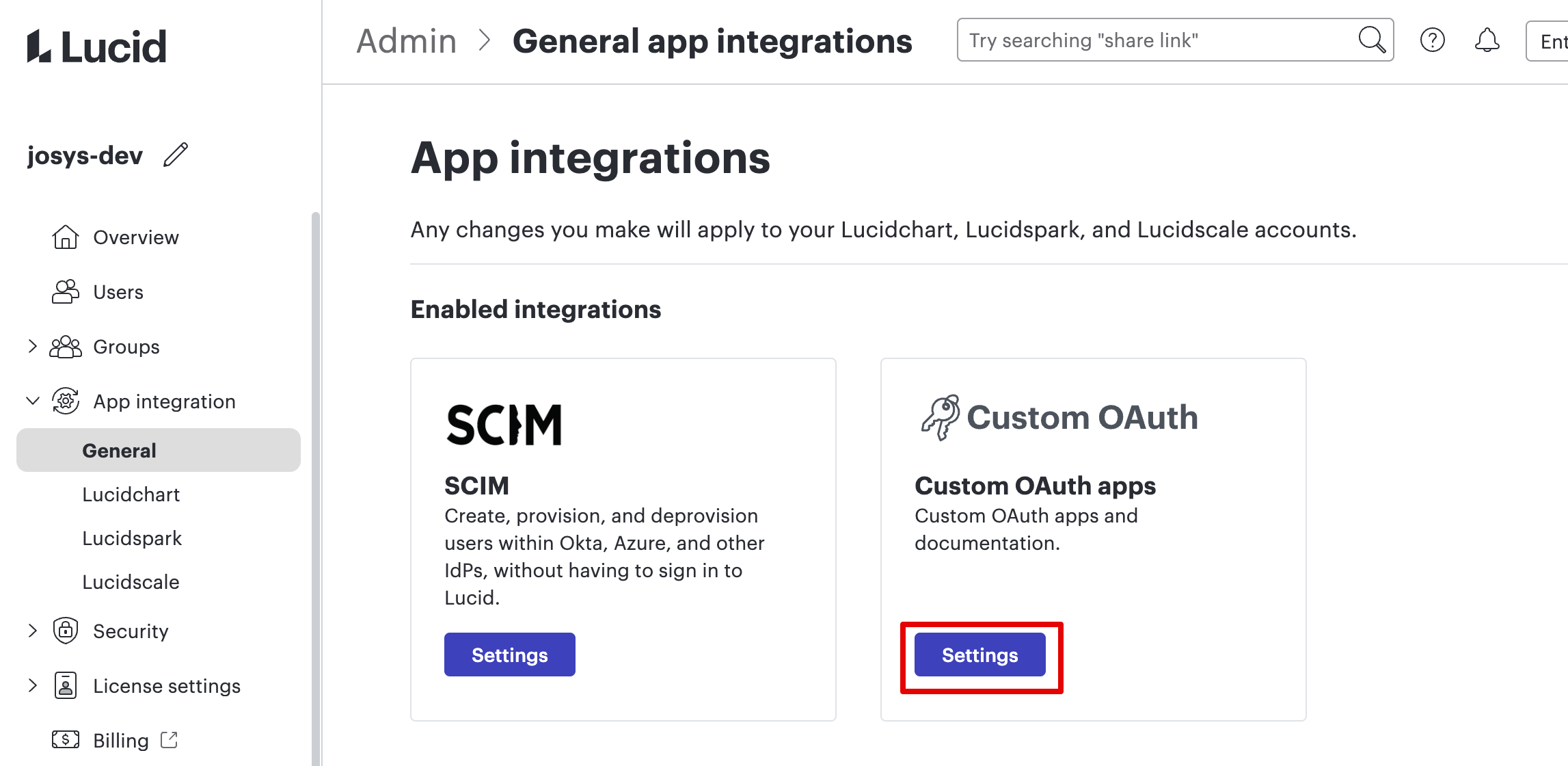

  2. Click Settings under App integration > Custom OAuth, and then click the Developer Portal link that appears.

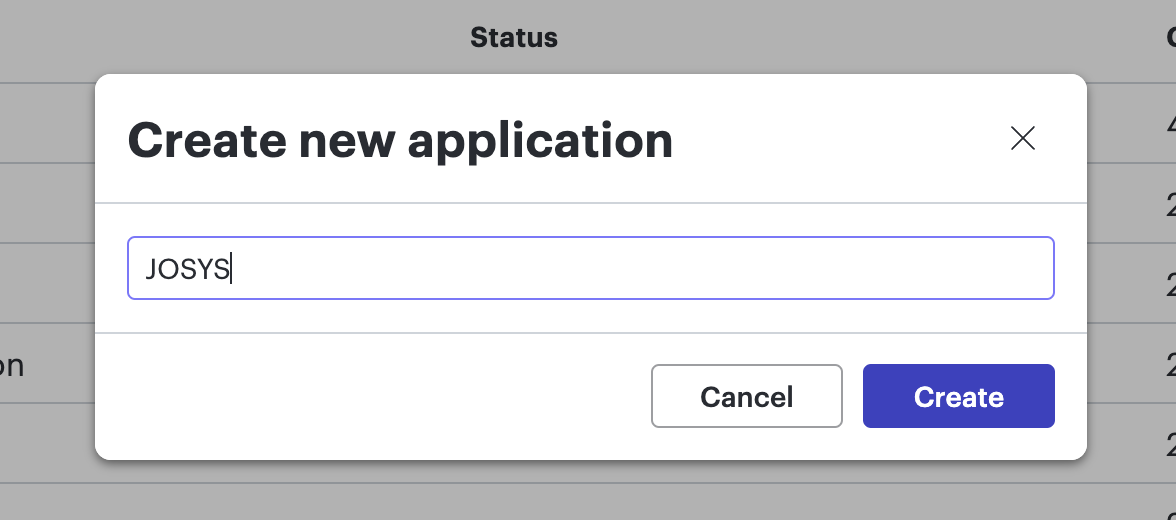

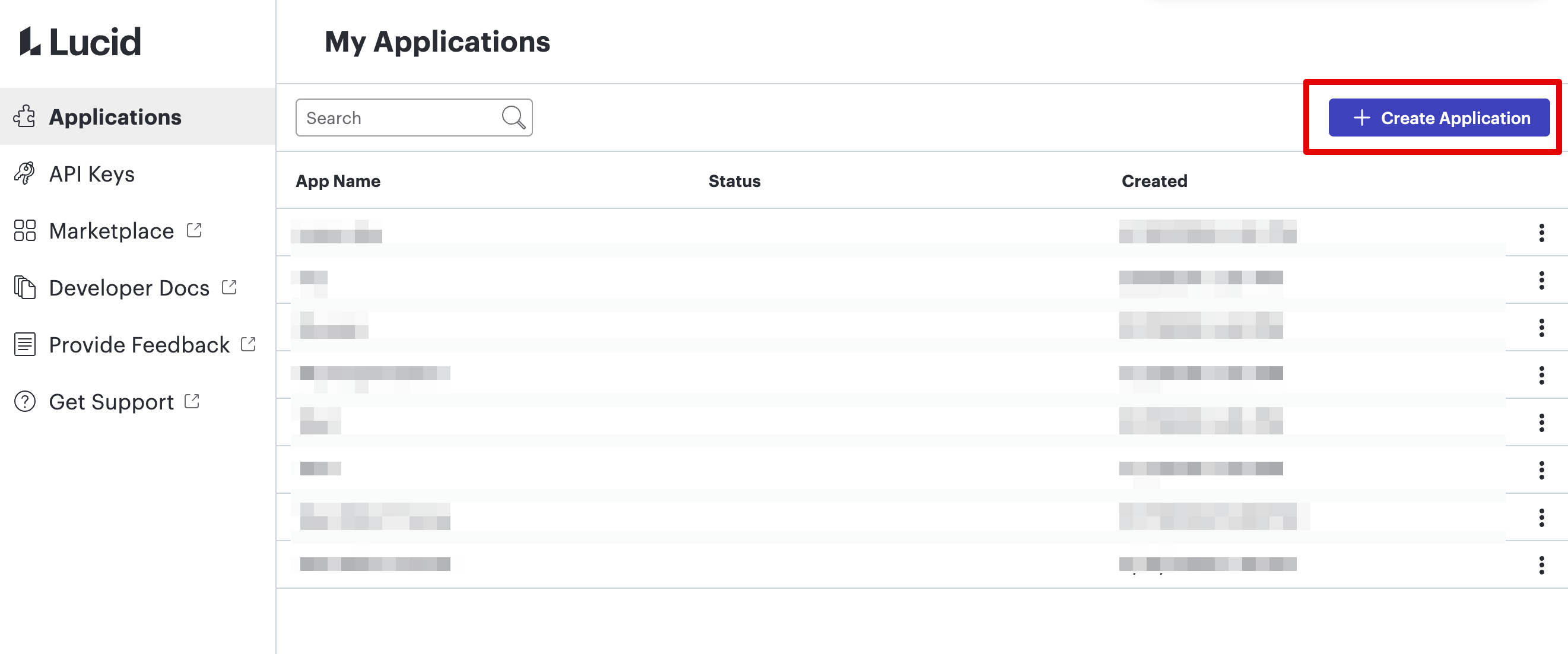

  3. Click Create Application, enter any name in the Name field, and click Create.

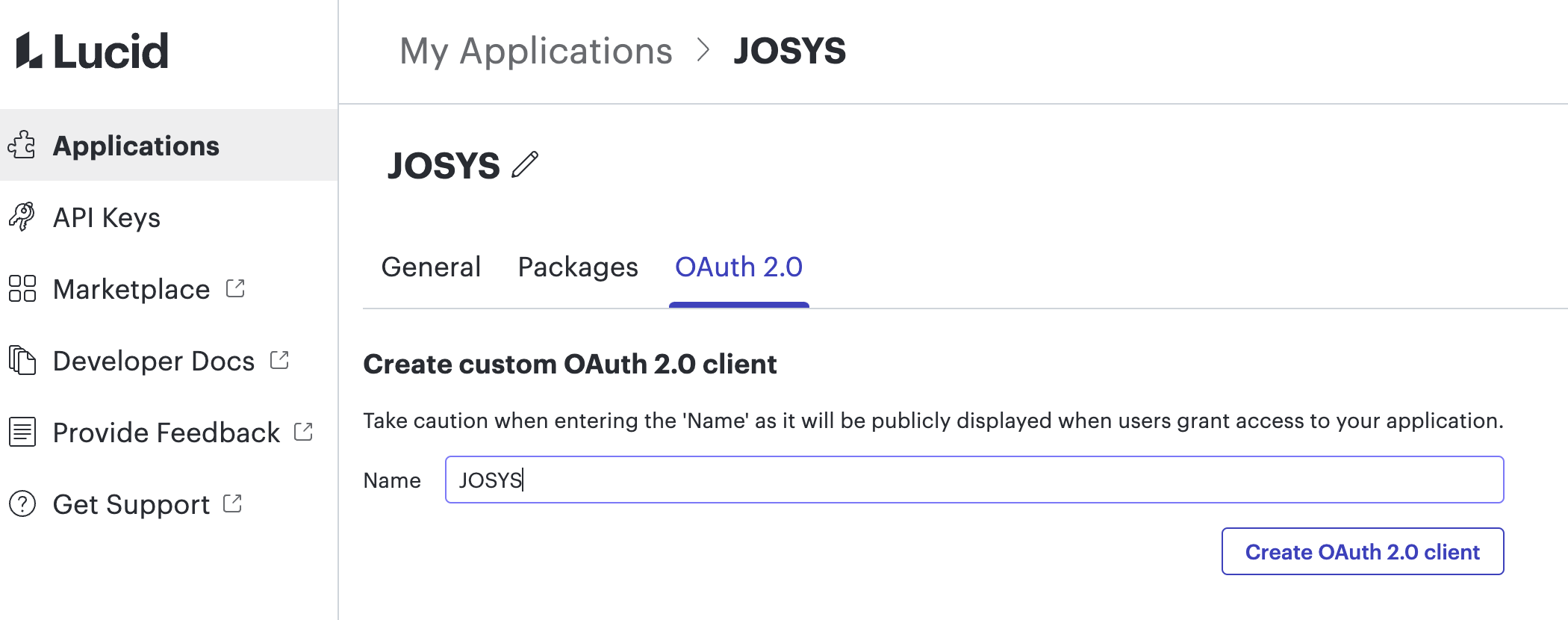

  4. Select the added application, click the OAuth2.0 tab, enter any name, and click Create OAuth2.0 client.

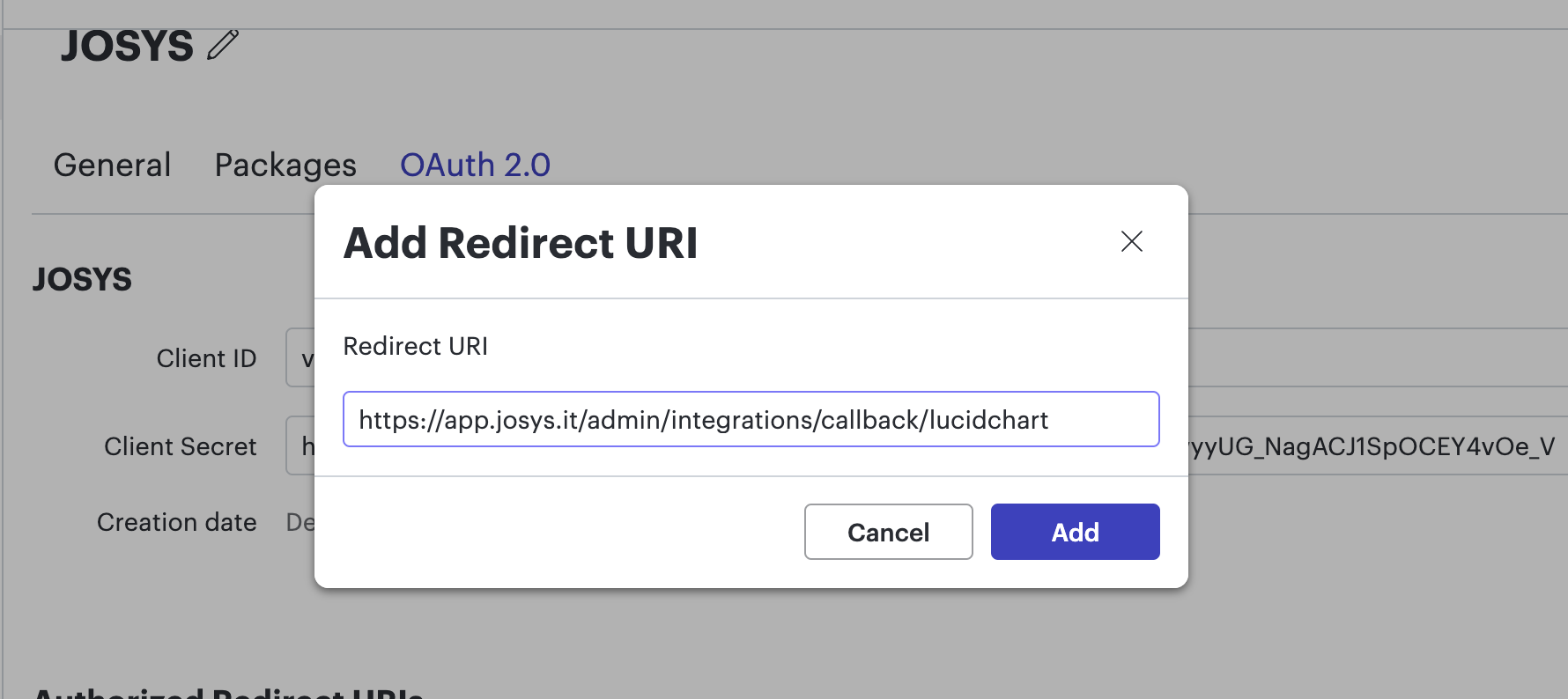

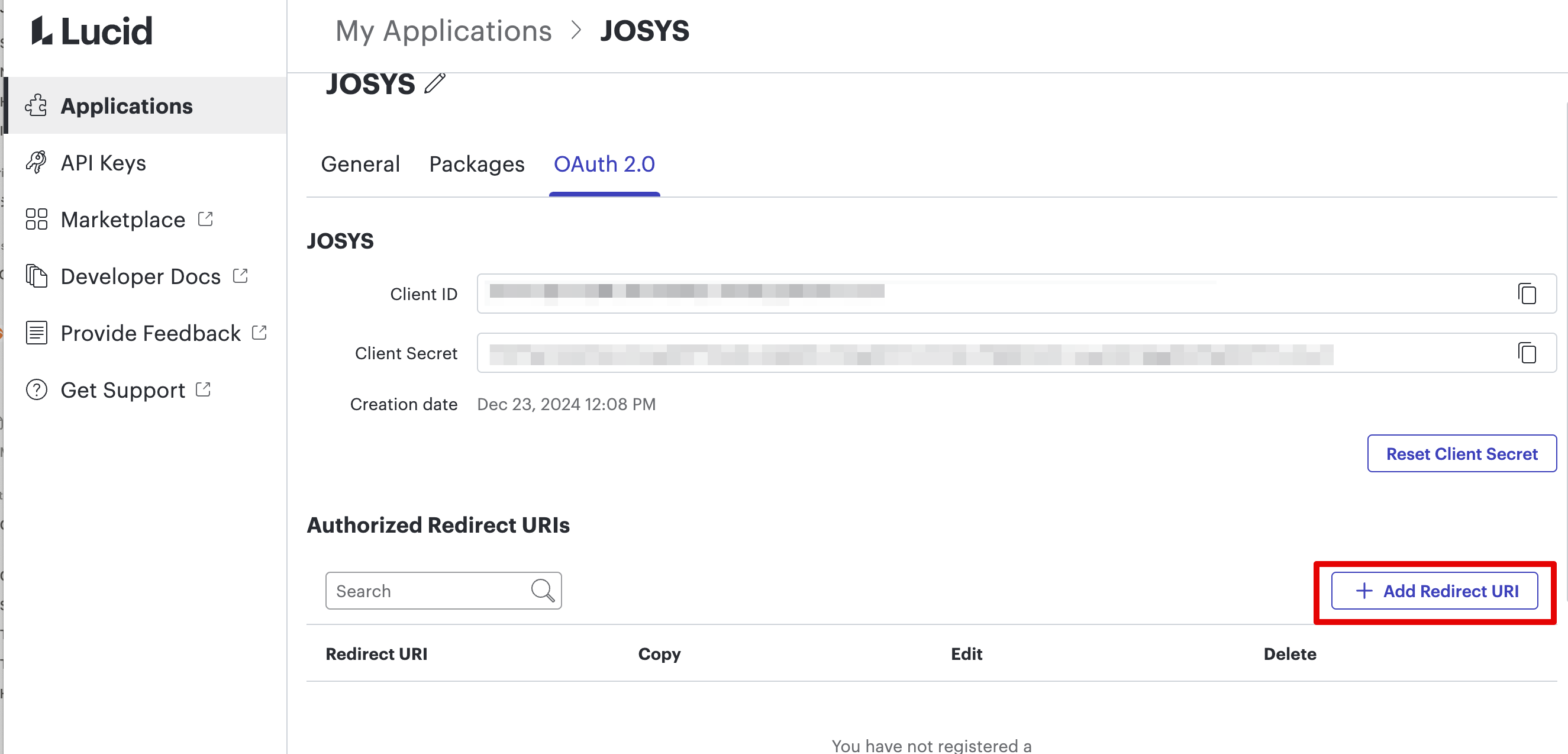

  5. Click Add Redirect URI, enter https://app.josys.it/admin/integrations/callback/lucidchart, and click Add.

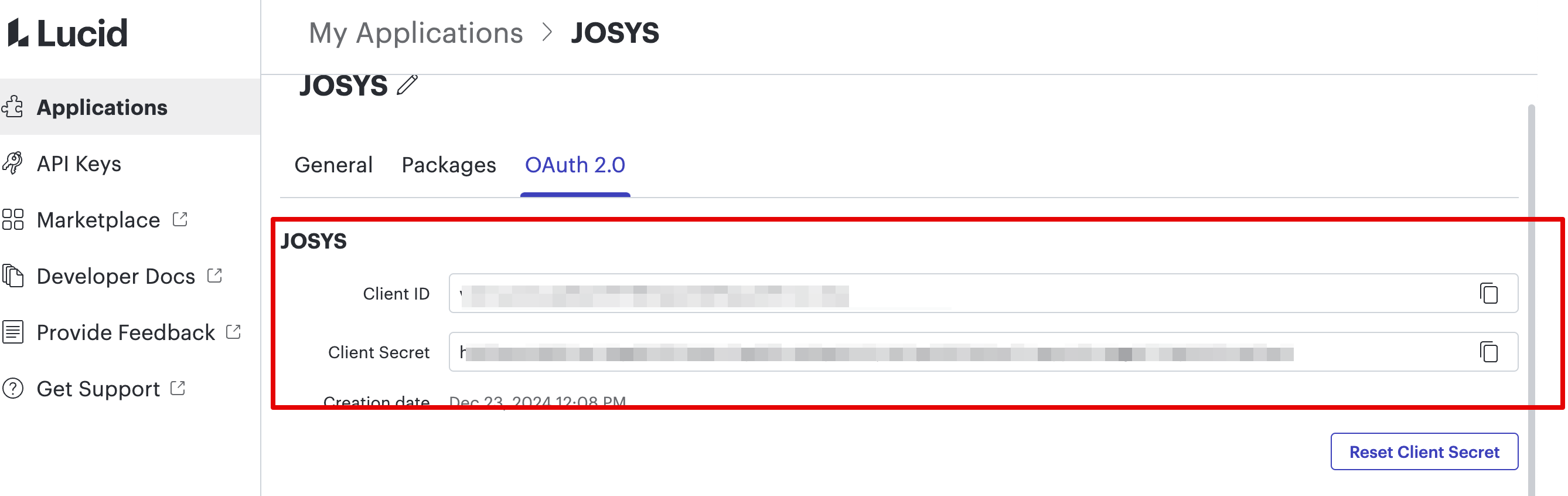

  6. Copy the Client ID and Client Secret.

Integrating with Josys

  1. From the left sidebar of Josys, click "Integrations > App Catalog".
  2. Search for Lucidchart and click it.

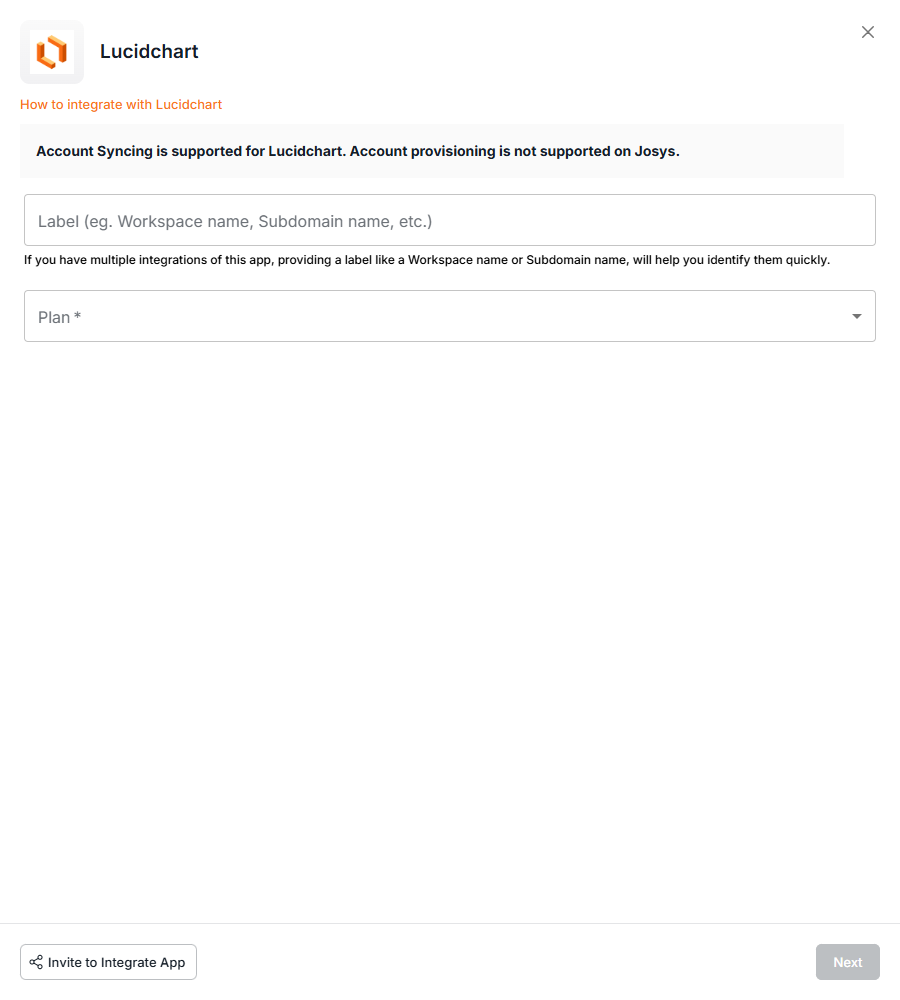

  3. The setup page will be displayed on the right side.

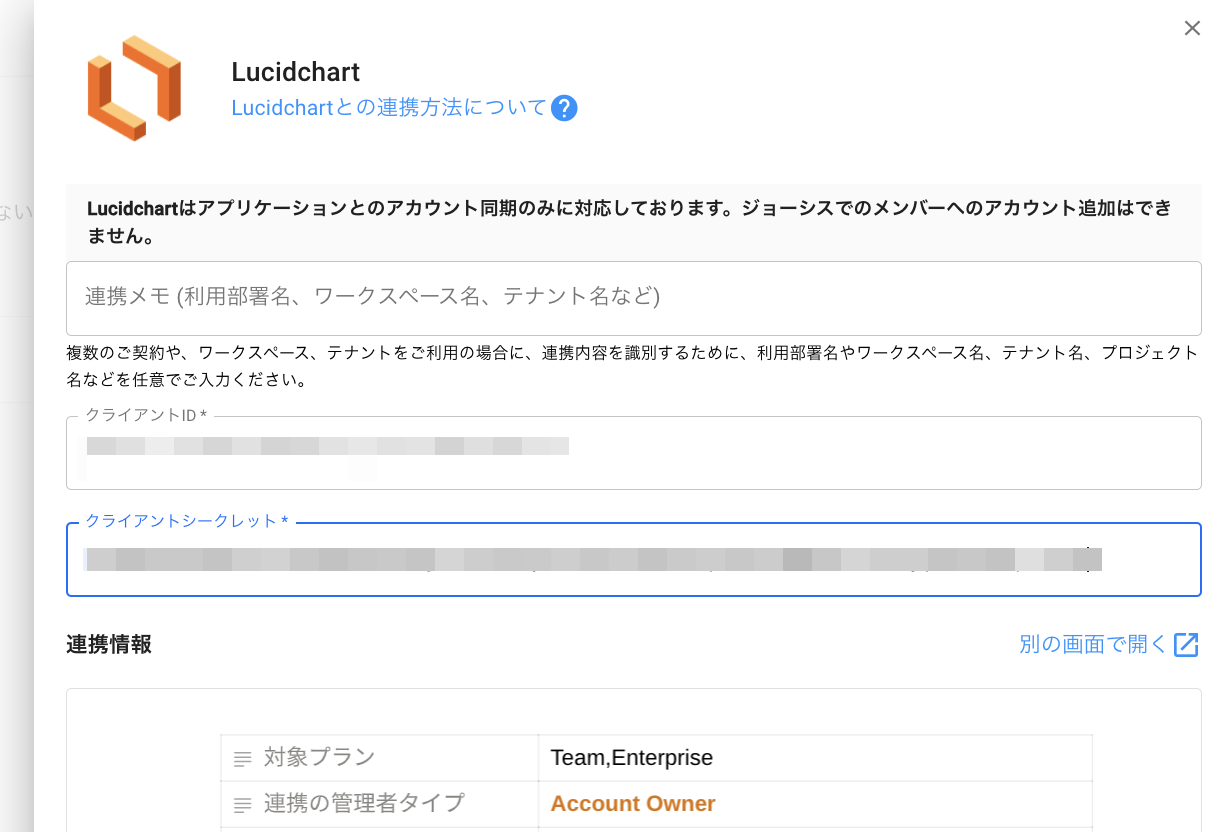

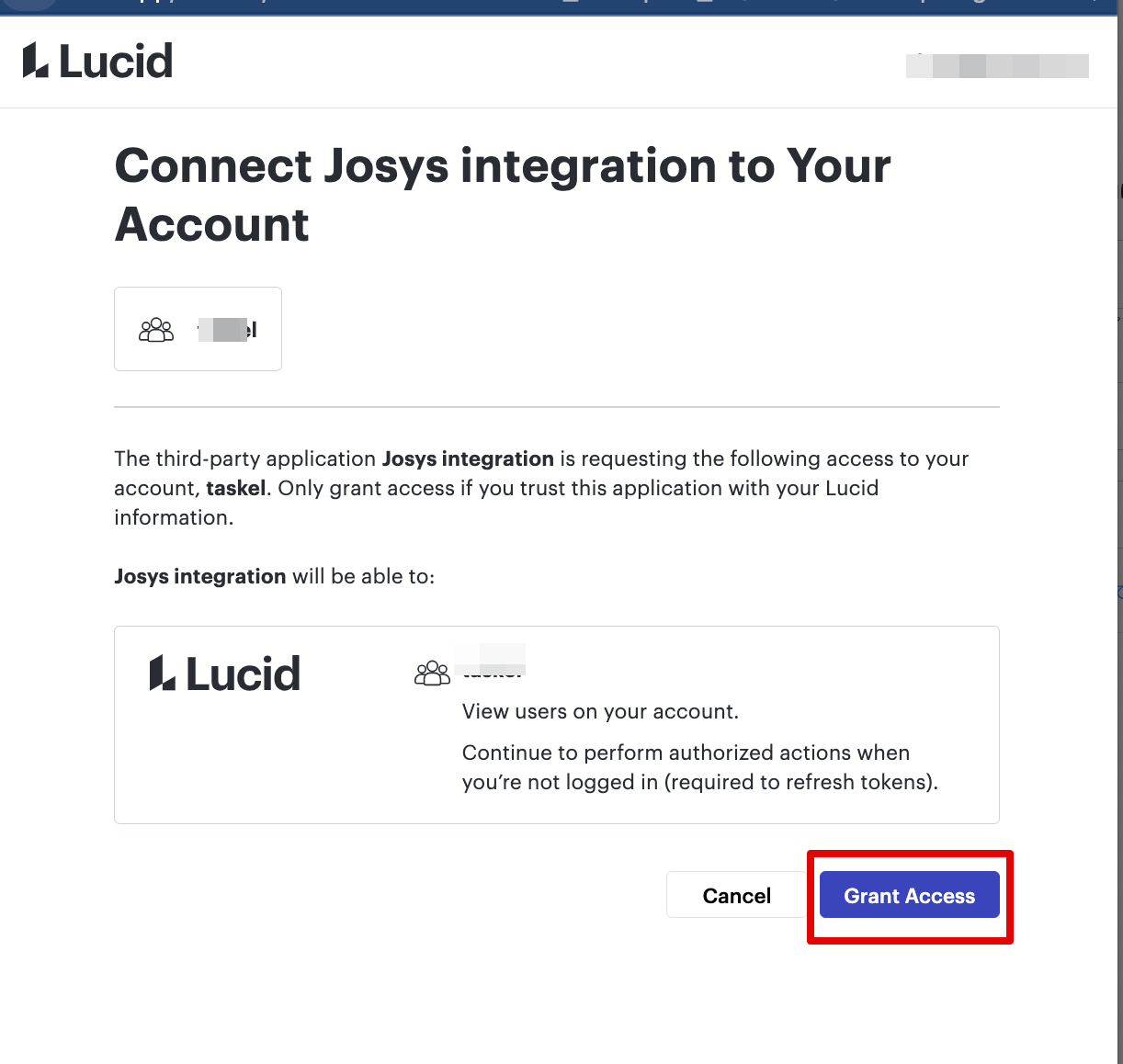

  4. Enter the Client ID and Client Secret, click "Next", and log in with an Account Owner account to complete the integration.
